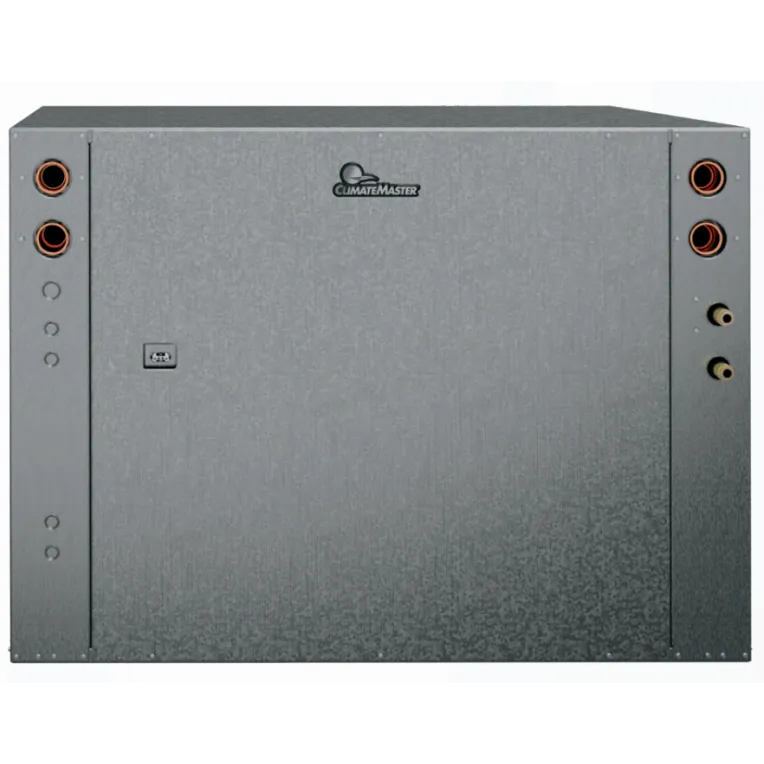

ClimateMaster SWM060AJDR0000S 5 Ton Tranquility S Water to Water Geothermal Heat Pump, R-454b
$12,500.00
Product code:SWM060AJDR0000S
Available
ClimateMaster SWM060AJDR0000S 5 Ton Tranquility S Water to Water Geothermal Heat Pump, R-454b
$12,500.00
General specs
- Product codeSWM060AJDR0000S
- ManufacturerClimateMaster
- SKUSWM060AJDR0000S
Dimensions
- Dimensions (L x W x H)27.50in x 25.40in x 27.00in
- Weight264.00 lb
ClimateMaster SWM060AJDR0000S 5 Ton Tranquility S Water to Water Geothermal Heat Pump, R-454b
Description
The Tranquility® (SW) Water-to-Water Series presents a combination of high efficiency and capacity, boasting advanced features, quiet operation, and versatile-application flexibility, all at competitive prices. The Tranquility SW, ClimateMaster's flagship water-to-water unit, caters to diverse HVAC and industrial needs. From radiant floor heating and snow/ice melt systems to chilled water for fan coils and industrial process control, it offers cost-effective solutions for both chilled and hot water applications.
Features
- Size 036 (3 tons, 10.6 kW), 060 (5 tons, 17.6 kW), 120 (10 Tons, 35.2 kW)
- High-efficiency scroll compressor(s)
- Refrigerant Detection System (RDS) (mandatory on size 120, optional for sizes 036 and 060)
- Exclusive single-side service access (front of unit) allows multiple units to be installed side-by-side for large capacity installations
- Exceeds ASHRAE 90.1 efficiencies
- Heavy-gauge galvanized-steel construction
- Insulated compressor compartment
- Small footprint
- TXV metering devices
- DXM2.5 Communicating Controls (Standard on unit sizes 036 and 060)
- CXM2 Communicating Controls:
- Multiple communication pathways for unit access and diagnosis:
- Cloud-based remote monitoring via Wi-Fi communicating color-touchscreen thermostat
- Connect directly to the system with a handheld service tool
- Provides real-time unit operating conditions
- Reduces startup, commissioning, and service time by providing key system temperatures electronically
- Captures operating conditions in the event of a safety shutdown
- Compressor Run and Fault lights visible on the front of the cabinet
- Six standard safety features
