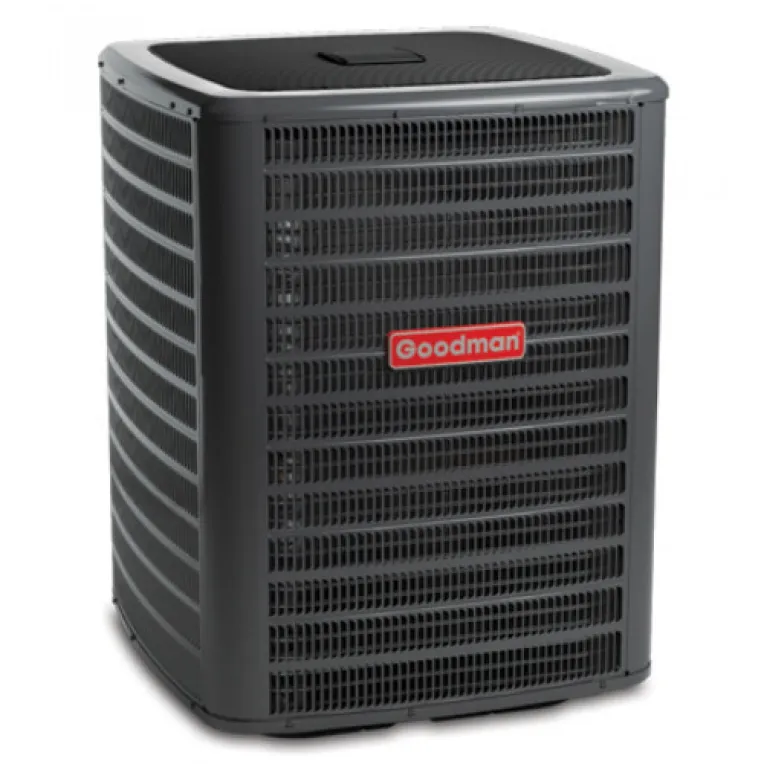

Goodman GSXC180241 2 Ton 2 Stage 18 SEER AC Condenser, R410A
$2,987.48
Product code:GSXC180241
Available
Goodman GSXC180241 2 Ton 2 Stage 18 SEER AC Condenser, R410A
$2,987.48
General specs
- Product codeGSXC180241
- ManufacturerGoodman
- SKUGSXC180241
Dimensions
- Dimensions (L x W x H)35.50in x 35.50in x 40.00in
- Weight236.00 lb
Technical Specifications
- Compressor Type Scroll
- Cooling Capacity 23400 Btu
- Electrical Voltage 208/230-1-60
- Liquid Line 3/8"
- Suction Line 3/4"
- Height 40"
- Width 35.5"
- Depth 35.5"
- SEER 18
- Compressor Stages Two Stage
- Refrigerant Type R-410A
- Tonnage 2 Ton
High-Efficiency Split System Air Conditioner Up to 19 SEER
Standard Features
- High-efficiency two-stage scroll compressor
- High-efficiency two-speed ECM condenser fan motor
- Integrated communicating ComfortBridge™ Technology ]
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Copeland® ComfortAlert™ built in diagnostics
- Fully charged for 15’ of tubing length
- Factory-installed sensors monitoring coil and ambient temperature
- Contactor with lug connection
- In communicating mode, only two low voltage wires to the outdoor unit are required
- AHRI Certified - ETL Listed
- Ground lug connection
- Color-coded terminal strip for non-communicating set-up
- Copper tube & enhanced aluminum fin coil
- Customized control algorithms
Cabinet Features
- Heavy-gauge galvanized steel cabinet and louvered coil guards
- Service valves with sweat connections and easy-access gauge ports
- Engineered sound control top design
- Wire fan discharge grille
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Single-panel access to controls with space for field-installed accessories
- Service port and controls are accessible while unit is operating
- Compact footprint
- Rust-resistant screws
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
