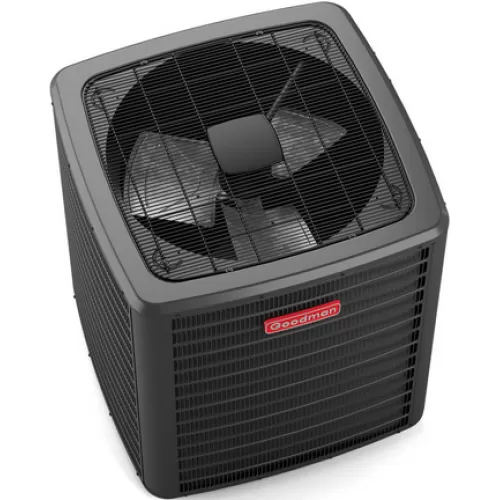

Goodman GSXC703610 3-Ton 2-Stage Straight Cool 17.2 SEER2 Condenser
0 opinions
$3,326.57
Product code:GSXC703610
Product available
Goodman GSXC703610 3-Ton 2-Stage Straight Cool 17.2 SEER2 Condenser
$3,326.57
General specs
- Product codeGSXC703610
- ManufacturerGoodman
- SKUGSXC703610
Dimensions
- Dimensions36.00in x 36.00in x 40.00in
- Weight238.00lb
Technical Specifications
- Breaker Size 40 Amps
- Cooling BTU 36000
- Electrical Voltage 208/230v 1 Phase 60Hz
- Liquid Line 3/8"
- Product type Condenser
- SEER2 17.2
- Suction Line 3/4"
- Compressor Stages Two Stage
- Refrigerant Type R-410A
- Maximum Sound Level (dB) 72 dB
- Tonnage 3.0 Tons
Goodman GSXC703610 3 Ton, 17.2 SEER2 High-Efficiency 2-Stage Split System Air Conditioner
Standard Features:
- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge Technology
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud App
- Copeland ComfortAlert built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard with rust-resistant screws.
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Service valves with sweat connections and easy-access gauge ports
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds
