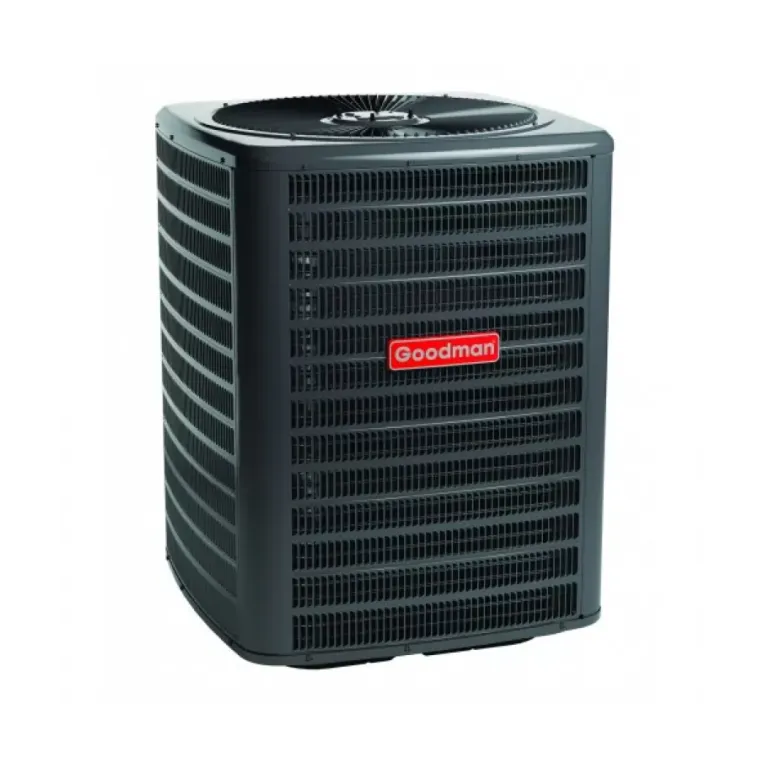

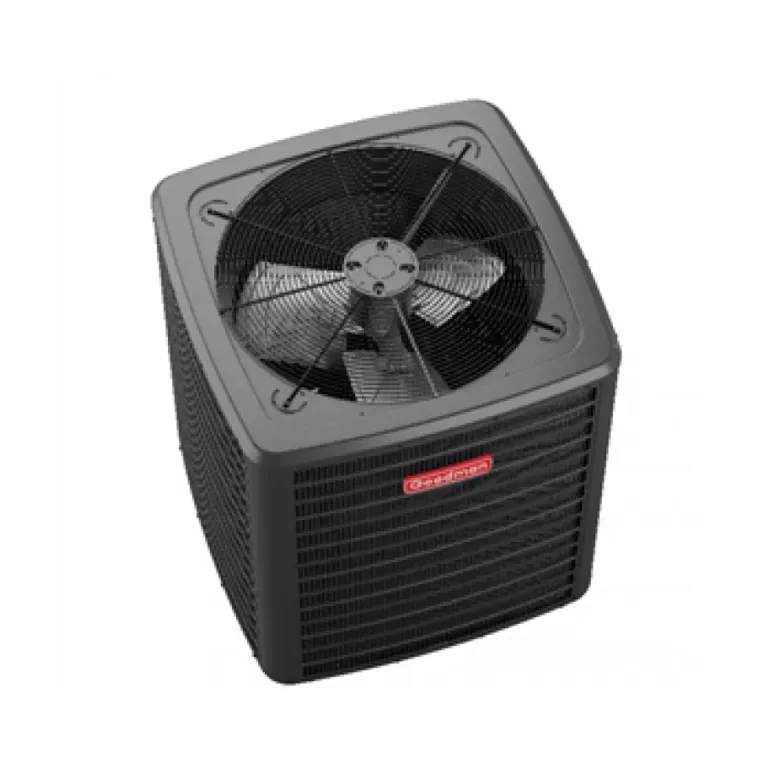

Goodman GSXN401810 1.5 Ton 14.3 SEER2 AC Condenser
$1,585.57
Product code:GSXN401810
Available
Goodman GSXN401810 1.5 Ton 14.3 SEER2 AC Condenser
$1,585.57
General specs
- Product codeGSXN401810
- ManufacturerGoodman
- SKUGSXN401810
Dimensions
- Dimensions (L x W x H)26.00in x 26.00in x 27.00in
- Weight118.00 lb
Technical Specifications
- Blower Motor Single Speed PSC Motor
- Category Split Air Conditioner
- Compressor Type Rotary
- Condenser Stages Single Stage
- Connection Sweat
- Cooling Capacity 18,000 Btu
- Decibel Level (dBA) 71
- Electrical Voltage 208/230v 1 Phase 60Hz
- Horsepower 0.125 HP
- Liquid Line 3/8"
- Max Circuit Breaker 15 Amps
- Min Breaker Size 8.3 Amps
- Suction Line 3/4"
- Weight 118 lbs.
- Height 27"
- Width 26"
- Depth 26"
- SEER 14.3 SEER2 (Efficiency)
- Brand Goodman
- Refrigerant Type R410A
- Tonnage 1.5 Ton
Goodman GSXN401810 - 1.5 Ton Single Stage Air Conditioner w/ R410A Refrigerant.
Standard Features:
- Energy-efficient compressor
- Single-speed condenser fan motor
- Factory-installed filter drier
- Copper tube/aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Fully charged for 15' of tubing length.
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with a louvered sound control top
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
