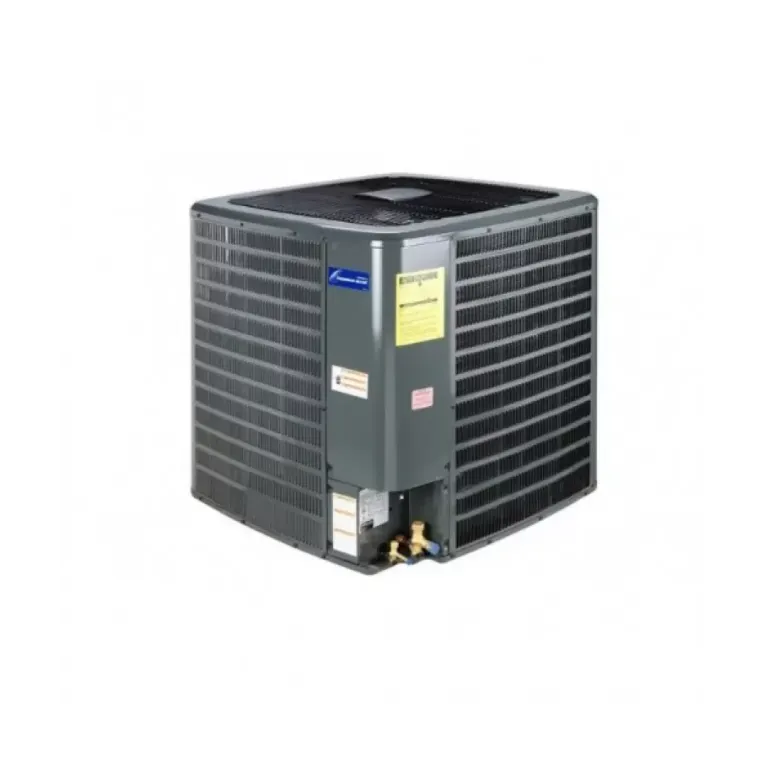

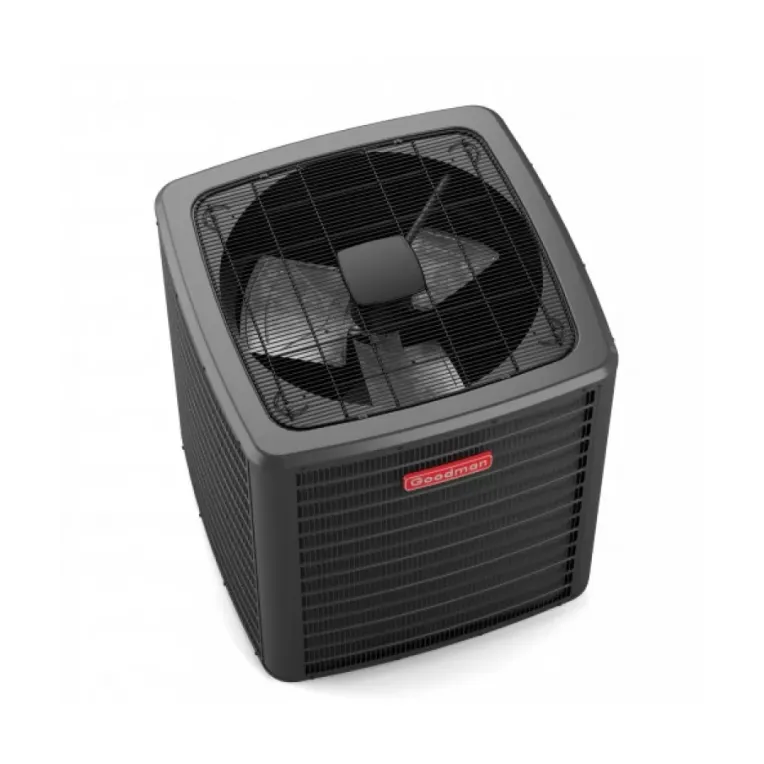

Goodman GSZB401810 Split Heat Pump 1.5 Ton, 14.3 SEER2, Single Stage
$1,950.50
Product code:GSZB401810
Available
Goodman GSZB401810 Split Heat Pump 1.5 Ton, 14.3 SEER2, Single Stage
$1,950.50
General specs
- Product codeGSZB401810
- ManufacturerGoodman
- SKUGSZB401810
Dimensions
- Dimensions (L x W x H)29.00in x 29.00in x 36.00in
- Weight161.00 lb
Technical Specifications
- Blower Motor Single Speed PSC Motor
- Category Split Heat Pump
- Compressor Type Rotary
- Condenser Stages Single Stage
- Connection Sweat
- Cooling Capacity 18,000 Btu
- Decibel Level (dBA) 70
- Electrical Voltage 208/230v 1 Phase 60 Hz
- Heat Capacity 18,000 Btu
- Horsepower 0.167 HP
- Liquid Line 3/8"
- Max Circuit Breaker 15 Amps
- Min Breaker Size 8.6 Amps
- Suction Line 3/4"
- Weight 161 lbs.
- Height 35.6875"
- Width 29"
- Depth 29"
- SEER 14.3 SEER2 (Efficiency)
- Brand Goodman
- Refrigerant Type R-410A
- Tonnage 1.5 Ton
Goodman GSZB4 Split Heat Pump 14.3 SEER2 & HSPF, Single Stage, 1.5 Ton.
Standard Features:
- Energy-efficient compressor.
- SmartShift® technology to ensure quiet reliable defrost.
- Enhanced aluminum fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton.
- Single-speed PSC condenser fan motor.
- Factory-installed bi-flow liquid-line filter drier.
- Factory-installed suction-line accumulator.
- Factory-installed compressor crankcase heater.
- Factory-installed high-capacity muffler.
- High- and low-pressure switches.
- Service valves with sweat connections and easy access to gauge ports.
- Fully charged for 15’ of tubing length.
- Contactor with lug connection.
- Ground lug connection.
- AHRI Certified; ETL Listed.
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40.
- Steel louver coil guard.
- Heavy-gauge galvanized-steel cabinet.
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval.
- Top and side maintenance access.
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).
Warranty:
- 10 Years Parts and Lifetime Compressor with Online Registration.
