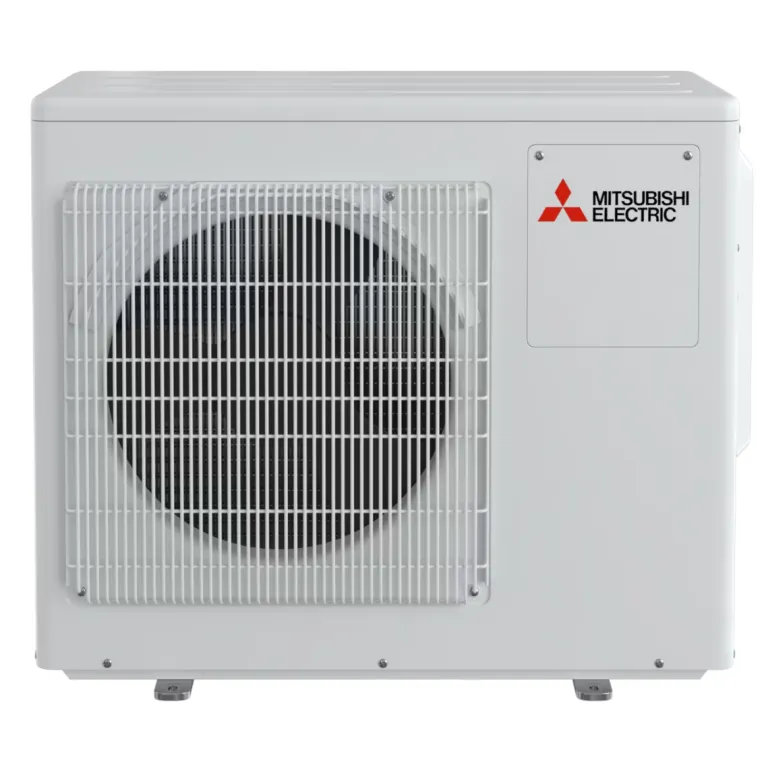

Mitsubishi MXZ-2C20NA4-U1 1.5 Ton Multi Zone Heat Pump, R-410A
$1,455.90
Product code:MXZ-2C20NA4-U1
Available
Services
Following addons are available for this product.
Engineering Design
Mitsubishi MXZ-2C20NA4-U1 1.5 Ton Multi Zone Heat Pump, R-410A
$1,455.90
General specs
- Product codeMXZ-2C20NA4-U1
- ManufacturerMitsubishi
- SKUMXZ-2C20NA4-U1
Dimensions
- Dimensions (L x W x H)18.50in x 40.00in x 35.13in
- Weight149.91 lb
Technical Specifications
- Refrigerant Type R-410A
- Tonnage 1.5 Tons
Mitsubishi MXZ-2C20NA4-U1 1.5 Ton Multi Zone Heat Pump, R-410A
Specifications
CFM 1,342-1,458
Cooling Capacity 20,000
Cooling Rated Capacity Btu/h 20000
Cycle/Hertz 50/60 Hz
EER 10-12.7
EER2 10-12.7
Heating Capacity 22,000
Liquid Line Size (OD) 1/4"
Maximum Piping Height 49'
Maximum Piping Length 164’
Number of HVAC Zones 2-2
Phase Single
Refrigerant R-410A
Refrigerant Charge 5 lbs. 15 Oz.
SEER 16-20
SEER2 16-20
Suction Line Size (OD) 3/8”
Tonnage 1.5
Voltage 208-230 VAC
Liquid Line Fitting Type Flare
Rated Load Amps (RLA) 10.7
Suction Line Fitting Type Flare
Maximum Overcurrent Protection (MOCP) 20
