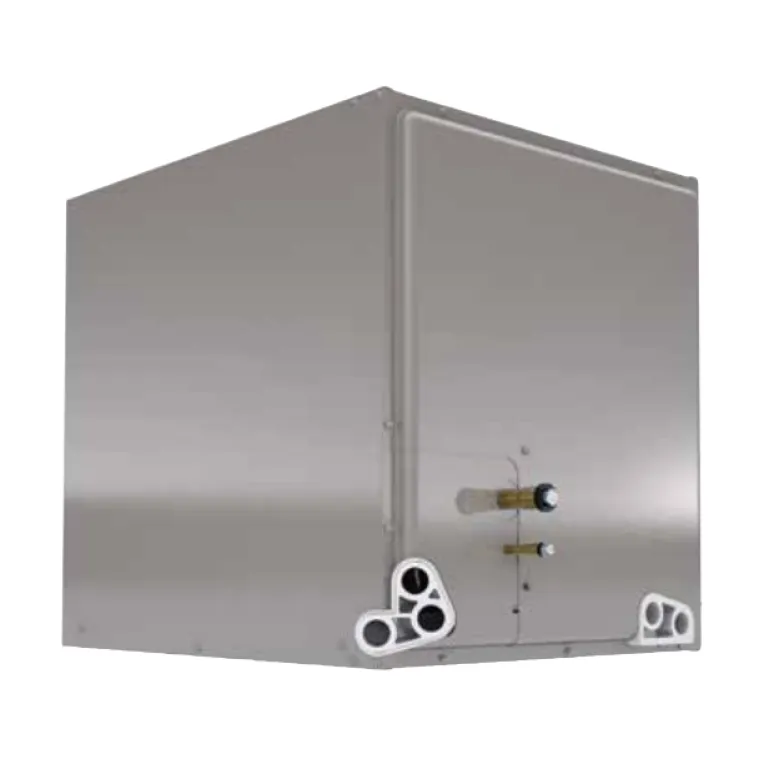

Thermal Zone TCFZ4824STANMC 4 Ton Cased Furnace Evaporator N-Coil, TXV 4.0T 24.5", R-410A
$1,320.20
Product code:TCFZ4824STANMC
Available
Services
Following addons are available for this product.
Installation

Thermal Zone TCFZ4824STANMC 4 Ton Cased Furnace Evaporator N-Coil, TXV 4.0T 24.5", R-410A
$1,320.20
General specs
- Product codeTCFZ4824STANMC
- ManufacturerThermal Zone
- SKUTCFZ4824STANMC
Dimensions
- Dimensions (L x W x H)25.00in x 25.00in x 30.00in
- Weight100.00 lb
Thermal Zone TCFZ4824STANMC 4 Ton Cased Furnace Evaporator N-Coil, Multipoise, standard efficiency, TXV 4.0T 24.5", R-410A
Description:
- Thermal Zone™ Indoor Furnace cased coils and replacement uncased coils are designed for use with Thermal Zone outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow.
- Constructed of aluminum fins bonded to internally grooved aluminum tubing.
- Coils are tested at the factory with an extensive refrigerant leak check.
- Coils have copper sweat refrigerant connections.
- Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
- Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only).
- Approved for system application with a variety of Thermal Zone outdoor units.
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
- Compatible with Germicidal Light System (UV resistant).
- Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
- Unique drain pan design maximizes application flexibility and condensate removal.
- N-Coil design maximizes performance and minimizes height required at installation.
- Coils are AHRI certified for system application with a variety of Thermal Zone outdoor units.
