Unico High-Velocity 2.5 Ton Heat & Cool Bundle - Garage Bonus Room + Adjacent Rooms
DiversiTech 6-34-4NM DiversiWhip 3/4" x 4' #8 THHN Wire
Quantity:1
Rectorseal 84405 36" x 36" x 3" ArmorPad for Condenser Unit
Quantity:1
Unico UPC-26TCH-1 SmartDuct, TFS, 2x12' (1 PCS)
Quantity:3
Unico UPC-26TCH-6 SmartDuct, TFS, 2x12' (6 PCS)
Quantity:2
Unico UPC-89TM-1 Install Kit, Round Metal Plenum, TFS, (1pk)
Quantity:3
ICM Controls ICM495-60A-NF 60 Amp Non-Fused Disconnect With Internal Surge Protection
Quantity:1
Quantity:1
Coleman XH536E2S11 3 Ton Heat Pump - 15.2 SEER2, R-454B, Single-Phase ECM
Quantity:1
Unico USM-01 Galvanized Duct, 7" x 5' x 28GA, 1/bx
Quantity:5
Unico WON0752-C Electric Furnace, 7.5kW, 1P/230V
Quantity:1
Unico M2430CL1-BA001 2.0-2.5 Ton Refrigerant Coil Module, A2L Compliant
Quantity:1
Unico M2430BL2-EC2 2.0-2.5 Ton Blower Module 120/208/230V
Quantity:1
Unico USM-05 Galvanized End Cap, 7", 1/bx
Quantity:1
Quantity:1
Quantity:1
Return Air Box with Filter Grille, 2430, 14" x 25"
Quantity:1
Unico UPC-89TM-6 Install Kit, 2", Round Metal Plenum, TFS, (6pk)
Quantity:2
Unico UPC-20B Secondary Drain Pan, M2430, 2-Module
Quantity:1
Unico UPC-59-2430 Return Air Adapter, Cooling Module, 2430
Quantity:1
- DiversiWhips Technical Data Sheet
- Product Catalog
- Twist Fit System Outlet Kits (UPC-89T)
- Install Checklist
- Installation Manual
- Specification Sheet
- Air Filters, Electronics, etc.
- Dimensional Data
- M Series Blower Module Specifications
- Air Filters, Electronics, etc.
- Submittal Sheet
- Dimensional Data
- Unico Accessories Document
- Install Checklist
- Unico Accessories Document
- Twist Fit System Outlet Kits (UPC-89T)
- Specification Sheet
- Unico Accessories Document
High-velocity cooling with supplemental heat bundle sized at 2.5 tons (30,000 BTU/hr nominal) for an 850 sq ft conditioned bonus room over a garage plus (2) adjacent rooms. Includes Unico design layout with a complete material list. Heat pump option available for supplemental shoulder-season heating. Customer in
Hastings, MN 55033 had the following request:
Project Description:
Attached garage addition with 850 sq. ft. conditioned bonus room above garage space. Also would like to use this system to supply 2 supply ducts to a 300 sq. ft. bedroom and 2 supply ducts to a 300 sq. ft. kitchen each to the east of the garage addition. Mostly interested in cooling design, however I would be looking at heat pump systems that can provide supplemental heating in transition seasons.
What’s included:
- System design layout (with outlet placement guidance)
- Complete material list for installation
- Support from the Unico Homeowner Design Team
Key Features
- 30,000 BTU high-velocity cooling capacity
- Ideal for bonus rooms over garages, finished attics, and additions
- Serves approx. 850 sq ft bonus room + (2) additional rooms
- Target airflow: ~525 CFM total
- 15 high-velocity outlets @ ~35 CFM each (final count confirmed in design)

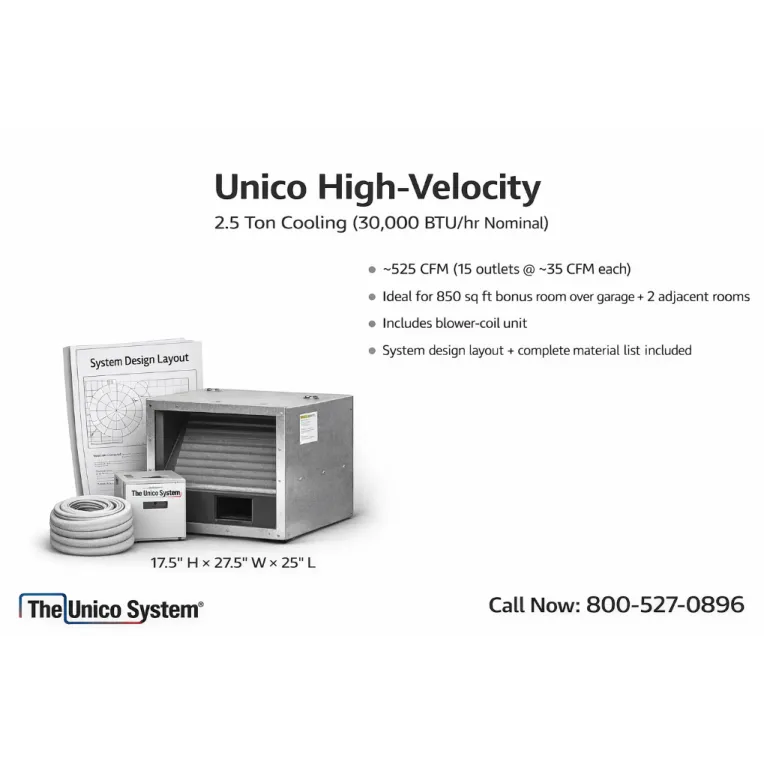

- Compact Unico blower-coil: 17.5" H × 27.5" W × 25" L
- Heat pump compatible for shoulder-season supplemental heating
- Includes full Unico system design layout and material list

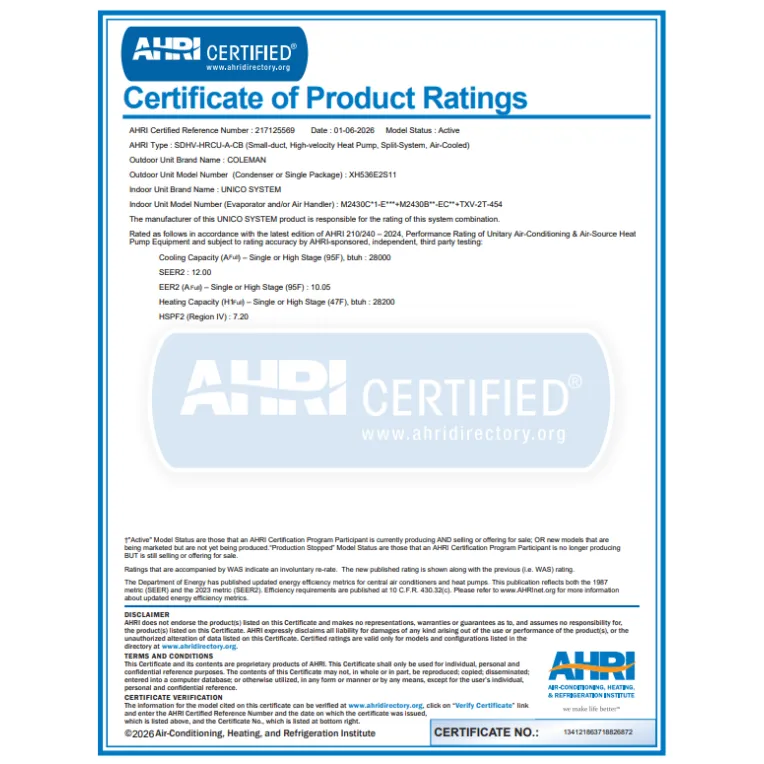

- AHRI-matched pairing provided once equipment selection is finalized
- Made in the USA Unico system components
Notes
Additional items may be required as the plenum layout is a 25' straight 7" round run without insulation (USM-10-R8). If longer than 12' runs are required purchase UPC-25T-4 (R3.3). A 50' lineset is included in the bundle.
